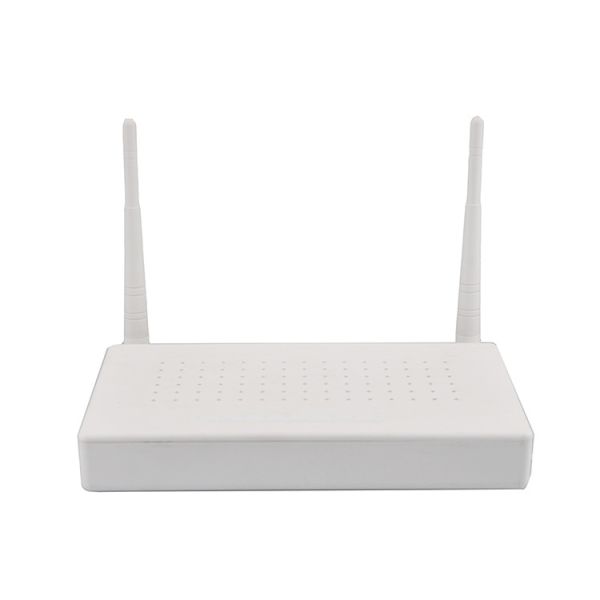

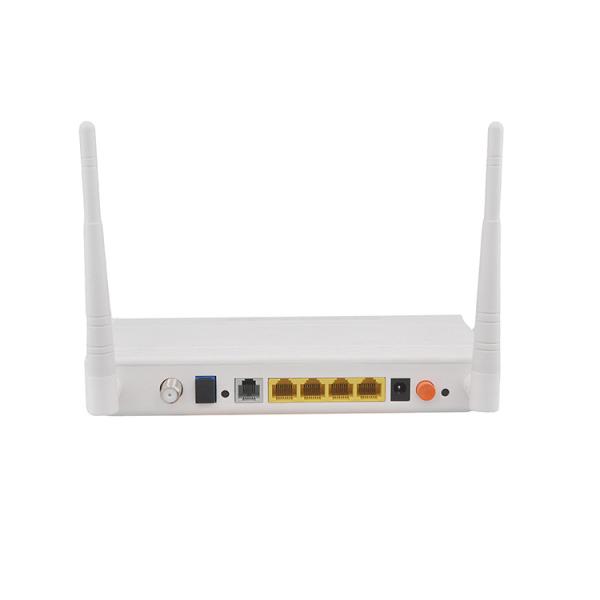

HGU XPON ONU Gpon Epon Onu Modem DC 12V SC APC Home Gateway Unit

Name: HGU XPON ONU Gpon Epon Onu Modem DC 12V SC APC Home Gateway Unit
Brand: UT-King
Price: 15 USD

China HGU XPON ONU Gpon Epon Onu Modem DC 12V SC APC Home Gateway Unit wholesale

Brand Name : UT-King

Model Number : UT-XP6442

Certification : iso ce fc

Place of Origin : China

MOQ : 1 PCS

Price : 15-18 usd/pcs

Payment Terms : T/T, Western Union, MoneyGram,Credit Card

Supply Ability : 1000pcs/week

Delivery Time : 3-7 days

Packaging Details : 1pcs/1box 20pcs/carton

Product Name : XPON ONU

Brand : UT-King

Function : 1ge+3fe+1tel+CATV+wifi

Wavelength : Tx 1310nm, Rx1490nm

Name : XPON ONU

Applications Distance : 20km

Chipset : RTL/ZTE/MTK

External Power Supply : DC 12V/1A

Optical Interface : SC APC

Contact Now

FTTH ONU 1GE+3FE+1POTS XPON ONU Catv Fiber Optic Gpon onu router with wifi

Description

UT-XP6442 series is designed as HGU(Home Gateway Unit) in deferent FTTH solutions by UT-King, Thecarrier-class FTTH application provides data service access, based on mature and stable, cost-effective XPON technology. It can switchautomatically with EPON and GPON when it access to the EPON OLT or GPON OLT.XPON series adopts high reliability, easy management, configuration flexibility and good quality ofservice (QoS) guarantees to meet the technical performance of the module of China Telecom EPONCTC3,0 and GPON Standard of ITU-TG.984.X. UT-XP6442 is designed by Realtek chipset 9603C.

Features

Support EPON and GPON, and switch mode automatically
Support ONU auto-discovery/Link detection/remote upgrade of software
WAN connections support Route and Bridge mode
Route mode supports PPPoE/DHCP/ static IP
Support WIFI Interface and multiple SSID
Support QoS and DBA
Support port Isolation and port vlan configuration
Support Firewall function and IGMP snooping multicast feature
Support LAN IP and DHCP Server configuration;
Support Port Forwarding and Loop-Detect
Support TR069 remote configuration and maintenance
Support CATV interface for Video Service
Specialized design for system breakdown prevention to maintain stable system

Parameter

Item

PON Interface

1 G/EPON port(EPON PX20+ and GPON ClassB+)

Receiving sensitivity: ≤-27dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20km

Wavelength

TX: 1310nm, RX: 1490nm

Optical Interface

SC/APC Connector

POTS interface

1* FXS, RJ11 connector

Support: G.711/G.723/G.726/G.729 codec

Support: T.30/T.38/G.711 Fax mode, DTMF Relay Line testing according to GR-909

LAN Interface

1 * 10/100/1000Mbps and 3 * 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector

CATV interface

RF, optical power : +2~-18dBm

Optical reflection loss: ≥45dB

Optical receiving wavelength: 1550±10nm

RF frequency range: 47~1000MHz, RF output impedance: 75Ω

RF output level: 78dBuV

AGC range: 0~-15dBm

MER: ≥32dB@-15dBm

Wireless

Compliant with IEEE802.11b/g/n,

Operating frequency: 2.400-2.4835GHz

support MIMO, rate up to 300Mbps,

2T2R,2 external antenna 5dBi,

Support: multiple SSID

Channel: Auto

Modulation type: DSSS, CCK and OFDM

Encoding scheme: BPSK, QPSK, 16QAM and 64QAM

LED

12, For Status of POWER,LOS,PON,SYS,LAN1,LAN2,WIFI,WPS,Internet,FXS,Worn,Normal(CATV)

Push-Button

3,For Function of Reset,WLAN,WPS

Operating Condition

Temperature: 0℃~+50℃

Humidity: 10%～90%(non-condensing)

Storing Condition

Temperature: -30℃~+60℃

Humidity: 10%~90%(non-condensing)

Power Supply

DC 12V/1A

Power Consumption

≤6W

Dimension

155mm×92mm×34mm(L×W×H)

Net Weight

0.24kg
